Automatic Ice Cream Cone Production Line , Rolled Sugar
Cone Machine , Biscuit Cone Machine.
Automatic Ice Cream Cone Production Line
| Applicable Industries | Food & Beverage Factory, Other |
| After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location | None |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2021 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Condition | New |
| Place of Origin | China |
| Brand Name | STARLAND |
| Model Number | CBIII-55*2A |
| Voltage | 220V/380V |
| Weight | 5000KG |
| Dimension(L*W*H) | 9200L x 2400W x 1800H |
| Certification | CE |
| Warranty | 1 Year |
| Key Selling Points | High Productivity |
| Number of Baking Plates: | 55 |
| Standard Cone /hour**: | 5000(23°,L170mm) |
| Place of Origin: | China |
| Gas consumption(kg)/ hour: | 9-10 |
| name: | Automatic Ice Cream Cone Production Line |
| Material: | Stainless Steel |
| Main Motor Specification: | 2.0hp ; 1.5kw |
CONE EJECTION SYSTEM.
(UTILITY MODEL PATENT#: ZL200820043161.9,ZL 200820189568.2 ).
Easy to use and maintain. Flexible cone ejector device with springs allows cone diameter within
2mm difference to be ejected, no matter flat-top or natural rimmed cone.
STAR-REEL SYSTE M
(INVENTION PATENT#: 2015206924431).
Wafer takes shorter path from baking plates to rolling molds. Use of sugar and oil can be reduced.
CONE LENGTH CONTROL DEVICES
Control the length,diameter,size of sugar cone and perfect flat topped.

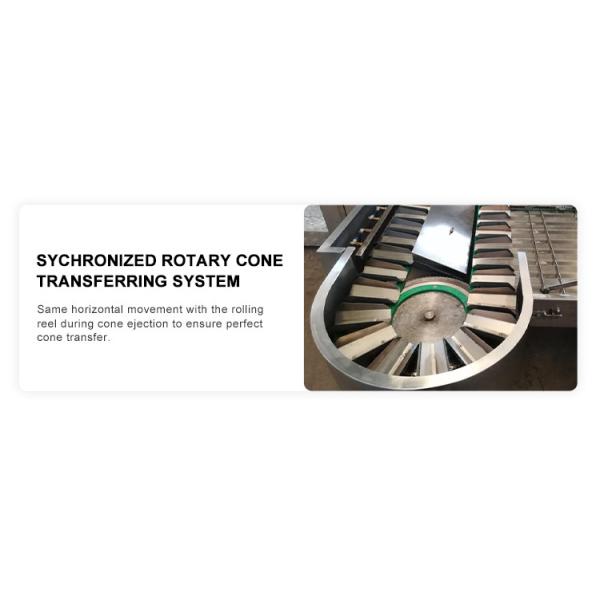

SYCHRONIZED ROTARY CONE TRANSFERRING SYSTEM
Same horizontal movement with the rolling reel during cone ejection to ensure perfect
cone transfer.
'HEARTTO HEA RT' ROTATION DEVICE
Place natural rimmed cone into the same position before packing.

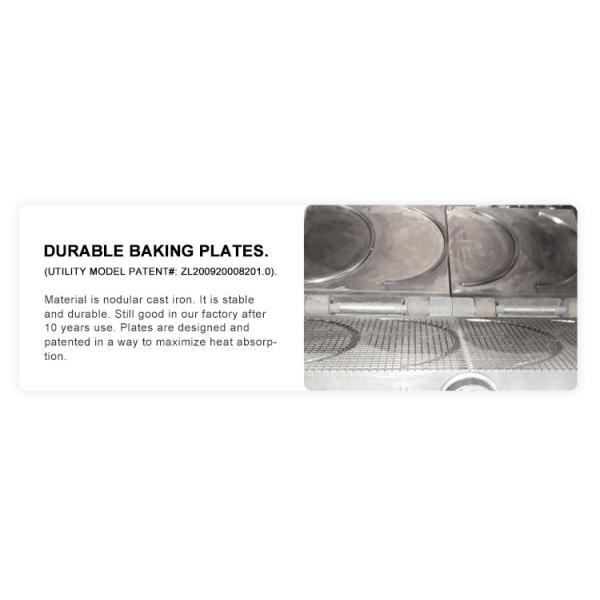

DURABLE BAKING PLATES.
(UTILITY MODEL PATENT#: ZL200920008201.0).
Material is nodular cast iron. It is stable and durable. Still good in our factory after 10 years use.
Plates are designed and patented in a way to maximize heat absorption.

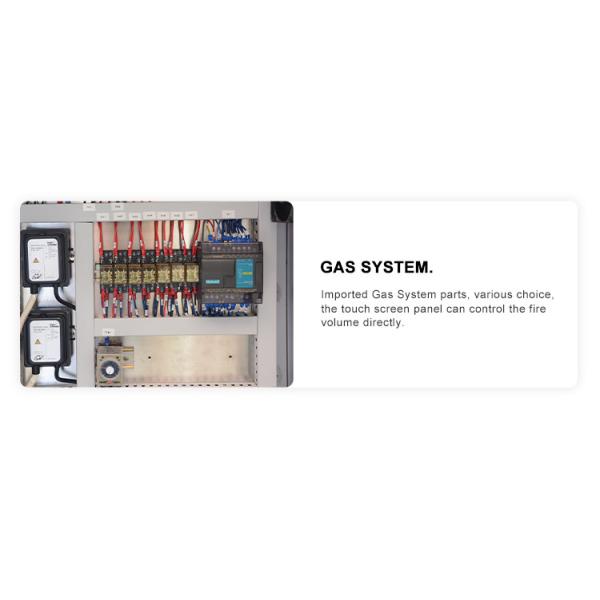

GAS SYSTEM.
Imported Gas System parts, various choice,the touch screen panel can control the fire
volume directly.
♦ What kind of ice cream cone your machine can make?
Our machine can make rolled ice cream cone,bowl shape cone,egg roll,and wafer biscuit cone.
♦ What’s the voltage of your machines?
380V,other voltage can be customized.
♦ 3.How can i get quotation?
Send your requirements(cone shape,size,angle,and picture)and leave your email,we will send you quotation soon.
♦ Do you have automatic ice cream cone production line?
Yes,we have several models can be choose.
♦ Which kind of payment method you can accept?
T/T.Western Union,L/C.
After Sale Service
♥ Warranty policy one year from shipment
♥ We will send you the replacement after received the broken part
♥ Evaluate the customs rish and choose safest shipping company before shipping.
♥ Follow status up time by time until the goods arrived.
